Heat
Exchanger Gasket
Item No.:ZD-G2124
Description:Heat
exchanger gasket is a term that has been given to gasket used in heat
exhanger.The structure of the gasket or its type varies according to
operating condition of these heat exchangers.The heat exchanger gaskets
come in a wide spectre types including single or double
jacketed,corrugated,plain metal,soft and many other.A large section of
different materials allows heat exchangers to operate at temperature
beyond the capabilities of most soft gsket material.
Application;Available in wide range of
gasket materials,since they're all custom made.There are few limitations
regarding size and shape.
The material jacket provides mechanic strength
to contain the filler and improves chemical resistance.
Unique construction provides stability and
ensures trouble-free handling and installation.
Shape and Construction:
These gaskets are used in shell and tube type
heat exchangers.They can be manufactured in very different
size,shapes,with or without bars.The primary seal is at the inner
diameter of the gasket,the outer gasket diameter acts as secondary
seal.The bars seal between the heat exchangers passages.
The heat exchanger gaskets are produced in
several types to meet the most demanding applications.Gasket for heat
exchangers can be manufactured in metal or alloy with thickness 0.4mm
featuring a soft core inside a metallic jacket.
Main Specification of Heat Exchanger Gasket:
|
Temperature |
according with the material |
|
Pressure |
≤6.4MPa |
|
Gasket Factor |
m=3.75 |
|
Minimum Pre-tighten |
y=60MPa |

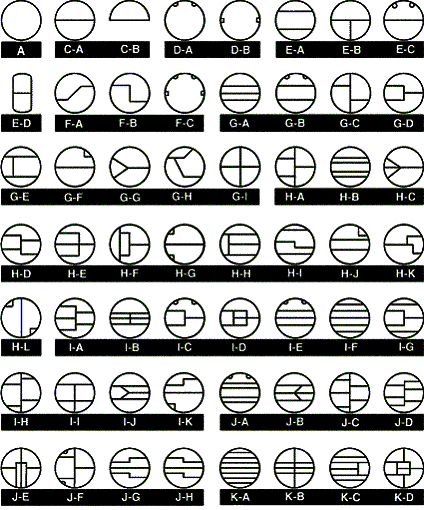

Main Style of Heat Exchanger Gasket：
Warning: Gasket
materials should never be recommended when both the temperature and the
pressure are at the maximums listed. Properties and applications shown
are typical. No application should be undertaken by anyone without
independent study and evaluation for suitability. Never use more than
one gasket in one flange joint, and never reuse a gasket. Improper use
or gasket selection could cause property damage and/or serious personal
injury. The data reported is a compilation of field testing, field
service reports and/or in-house testing. While the utmost care has gone
into publishing the information contained herein, we assume no
responsibility for errors. The information and specifications
contained in this website are subject to change without notice. This
revision cancels and obsoletes all previous editions.
