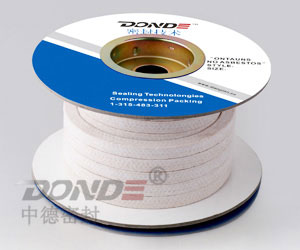

Nomex Fiber Fibre Braided Packing
Item No.:ZD-P1410
Description:
Nomex Fiber Fibre Braided Packing is
braided from high quality Dupont spun Nomex yarns with PTFE-Impregnation
and lubricant additive. High cross-sectional density and structural
strength, good sliding characteristic, gentle on shaft surfaces.
Compared to Kevlar, it do not hurt shaft, also ideal for food
industries.
Application:
A universal,
wear-resistant packing that is nevertheless gentle to shaft surface.
Designed specially for pumps, agitators, mixers, kneaders, refiners
etc. It’s excellently suitable for standardization in entire
industrial sectors, e.g. pulp and paper, sugar production,
breweries, sewage systems, water conditioning for power stations,
for cooling water and abrasive river water, in turbine oil circuits,
and other areas requiting a clean, and easy-to-install packing.
Main specification:
|
Temperature |
-100℃~+280℃ |
|
Pressure |
25bar(revolving)
50bar(reciprocating) 100bar(flange) |
|
PH Range |
1-13 |
|
Linear Speed |
20m/s(revolving) 2m/s(reciprocating)
2m/s(flange) |
|
Density |
1.3g/cm3 |
|
Size |
3*3mm-60*60mm（or as request） |
How to Order：
|
Item |
Order Code |
|
Kevlar Fibre Braided Packing |
ZD-P1400 |
|
Kevlar Fibre Packing With Silicon
Rubber Core |
ZD-P1401 |
|
Nomex Fibre Braided Packing |
ZD-P1410 |
|
Spun Kevlar Fiber
Packing |
ZD-P1430 |
|
Graphited Spun Aramid Fiber Packing |
ZD-P1431 |
For more information,please contact with
us directly,thanks！
|
