Pure

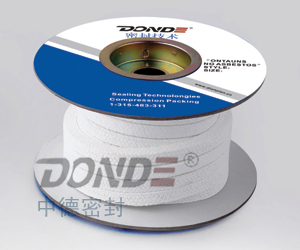

PTFE(Teflon) Fibre Braided Packing
Item No.:ZD-P1200
Description:As
we know,PTFE fiber has perfect resistance to most of chemicals except
molten alkali metals.This kind of plastic has perfect self-lubricant.
PTFE is called "king of plastic".And the PTFE cause no pollution to the
medium or liquid.Pure PTFE fiber braided packing is a braided packing
made of PTFE yarn without soaking any PTFE dispersion and lubrication.
But PTFE fiber braided packing has greatly enhanced ability to seal high
speed shafts with the addition of inactive and heat-resisting
agents.It's widely used in sealing of food equipment,chemical
industry,sealing of high linear velocity valve or pump.Specially,PTFE
Fiber Braided Packing can be applied to seal all chemicals except molten
alkali metals because PTFE fiber has perfect resistance to most of
chemicals.PTFE fiber braided packing can be used to seals of
pharmaceutic.Generall speaking,It is widely used for where contamination
is not allowed.It is recommended for chemical engineering.
Main Specification:
|
TECHNIQUE DATA |
Centrifugal separator |
Reciprocating pump |
Valve |
|
PH VALUE |
0--14 |
|
LINEAR Vg(M/S) |
4 |
2 |
2 |
|
PRESSURE（Bar） |
20 |
100 |
200 |
|
WORKING TEMPERATURE |
-200CENTIGRADE ~ 260 CENTIGRADE |
|
DENSITY：g/cm3 |
1.4～1.6 |
Actual application comparison of PTFE and other
packing:
|
Liquid
device |
Axle diameter
mm |
Revolution
r/min |
Liquid |
Temperature
℃ |
Pressure
Mpa |
Service life |
|
PTFE packing |
Other seal packing |
|
Centrifugal pump |
32 |
3600 |
Caustic soda |
100 |
9.0 |
60 days |
Oil-impregnated asbestos
seal packing for 7 days |
|
32 |
3600 |
Urea |
130 |
-- |
34 days |
Oil-impregnated asbestos
seal packing for 2～5 days |
|
50 |
1750 |
Dibutyl ester |
100 |
2.0 |
14 days |
PTFE-impregnated asbestos
seal packing for 1~5 days |
|
34 |
1750 |
Nitric acid |
Room temperature |
-- |
210 days |
Blue asbestos seal packing
for 14～21days |
|
34 |
1740 |
Methyl amine |
Room temperature |
7.0 |
96 days |
Blue asbestos seal packing
for 14 days |
|
30 |
1700 |
45% sulphuric acid |
77 |
-- |
46 days |
PTFE-impregnated blue
asbestos seal packing for 7 days |
|
30 |
1740 |
Chromate |
Room temperature |
4.5 |
60 days |
Blue asbestos seal packing
for 30 days |
|
25 |
1750 |
Hydrochloric acid |
Room temperature |
4.0 |
10 days |
Blue asbestos seal packing
for 7 days |
|
Pluger pump |
64 |
60/min |
Phenol |
149 |
20.0 |
60 days |
Oil-impregnated asbestos
seal packing for 14 days |
|
Pluger pump |
50 |
60 /min |
Methanal |
Room temperature |
50.0 |
80 days |
Oil-impregnated asbestos
seal packing for 14 days |
|
Valve |
18 |
-- |
50% sulphuric acid |
77 |
-- |
210 days |
Blue asbestos seal packing
for 14~21 days |
|
Valve |
18 |
-- |
sulphuric acid |
-- |
-- |
150 days |
Asbestos seal packing for
10days |
|
Autoclave |
88 |
400 |
Ethylenediamine
|
200 |
4.0 |
720 days |
Babbit gasket
for 360days |
|
Autoclave |
32 |
275 |
60% sulphuric acid |
200 |
50.0 |
60 days |
PTFE raw
material strand for 14days |
How to order：
|
Item |
Order Code |
|
Pure PTFE Fibre Braided Packing |
ZD-P1200 |
|
PTFE Fibre Packing With Lubrication |
ZD-P1201 |
|
Mutiple PTFE Filament Packing |
ZD-P1202 |
|
TFE
Packing With Silicon Rubber Core
|
ZD-P1203 |
|
PTFE
Packing With Kevlar Fibre Corner |
ZD-P1204 |
|
PTFE Packing with Kynol fiber
corners |
ZD-P1205 |
For more information,please contact with us
directly,thanks！
|
