Technical Parameter：
|
Ring Thickness
|
3mm, 4mm
|
|
Maximum Outer Diameter
|
4000mm
|
|
Minimum Inner Diameter
|
200mm
|
|
Linear Speed
|
120mm/s
|
|
Total Power
|
2.2 KW
|
|
Motor Power
|
1.5 KW
|
|
Voltage
|
380V/220V
|
|
Dimension
|
1000*700*900mm
|
|
Weight
|
280 KG
|

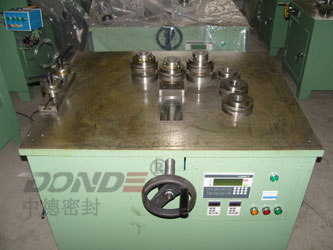

Metal Ring Bender-New style
Item No:ZD-M350B
Description:This
machine is designed to produce rings in large quantity.
Three rollers are all driving roller. The ID and OD of
rings can be set by PLC and automatically adjust
rotational speed to make size correct. All rings of
different material will be done in one time and work
continuously. Feeding metal strip into driving roller
and adjust right position, the machine will produce
rings according to ID and OD of rings set by touch
screen interface.
Technical Parameter：
|
Ring Thickness
|
2mm, 3mm, 4mm
|
|
Ring Width
|
6-60mm
|
|
Maximum Outer Diameter
|
4000mm
|
|
Minimum Inner Diameter
|
180mm
|
|
Linear Speed
|
0-200mm/s
|
|
Total Power
|
5 KW
|
|
Motor Power
|
0.75*3KW
|
|
Voltage
|
380V/220V
|
|
PLC
|
XINJIE
|
|
Dimension
|
1050*900*1000mm
|
|
Weight
|
380 KG
|
